Microcontroller

Essentially a makeshift USB-DMX-Interface.

Setup

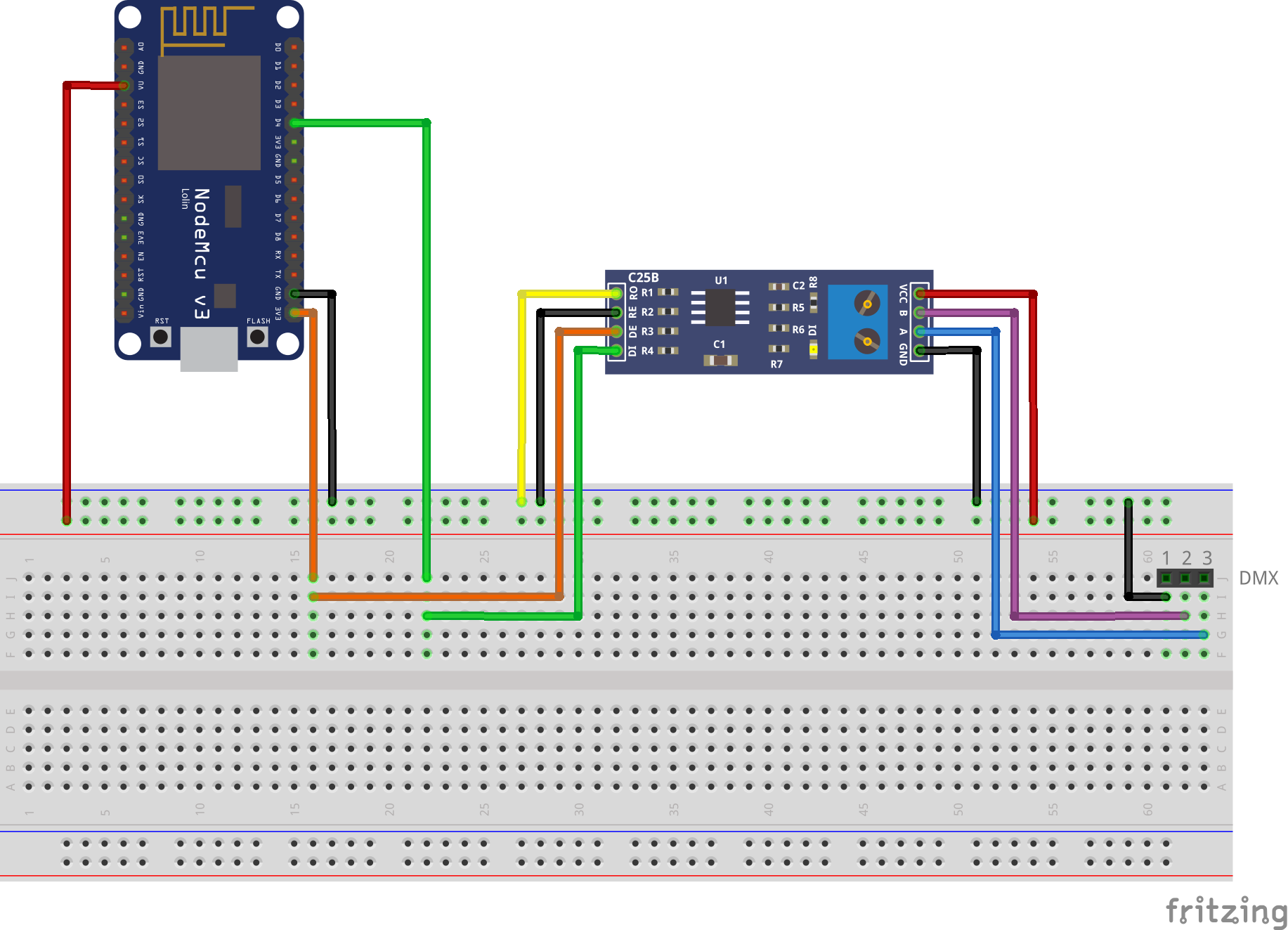

Using a breadboard:

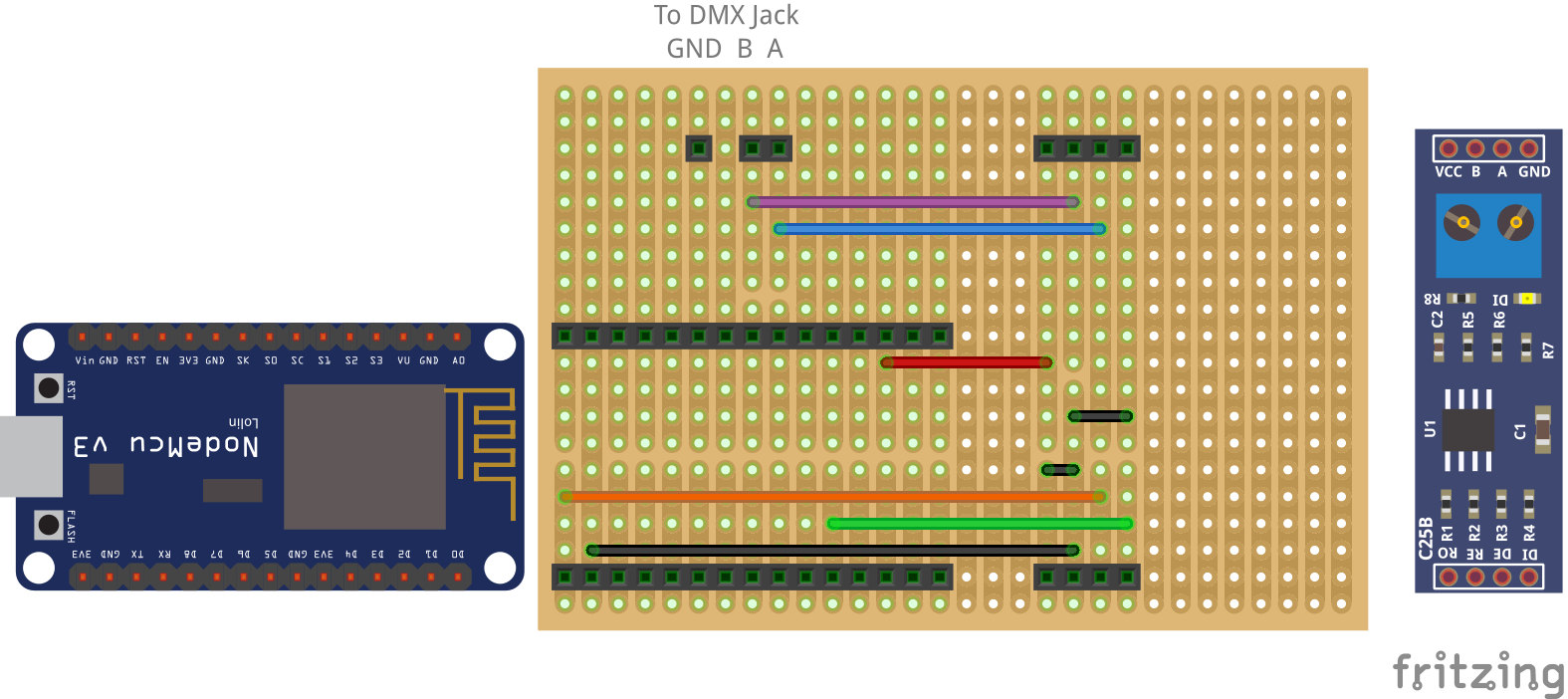

But it is much less flimsy if soldered on a stripboard:

Note that we're using a NodeMCU V3, which provides the 5 volts from USB on the VU Pin
